Netafim venturi injector

 OVERVIEW

Netafim™ offers its self-operated chemical injector system, field-proven under all environmental conditions, with over 30 years of technological know-how and experience.

HIGHLIGHTS

  • Electricity-free system
  • Operated by existing water pressure
  • Easy installation, operation and maintenance
  • Broad coverage across various sized plots
  • Fast and simple operation

Components

  • Suction kit
  • High resistance to chemicals used in agriculture
  • Integral non-return valve

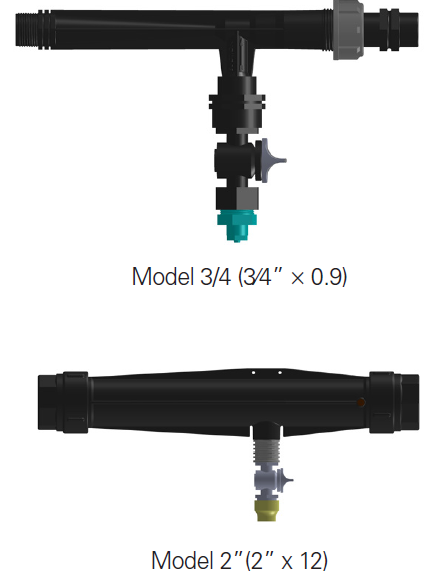

Features and CapabilitiesVentori both 1

  • Suitable for injection up to 1200 l/h
  • Adaptable to all irrigation systems
  • Regulated chemical injection

BENEFITS

  • Higher efficiency
  • No moving parts

chemical

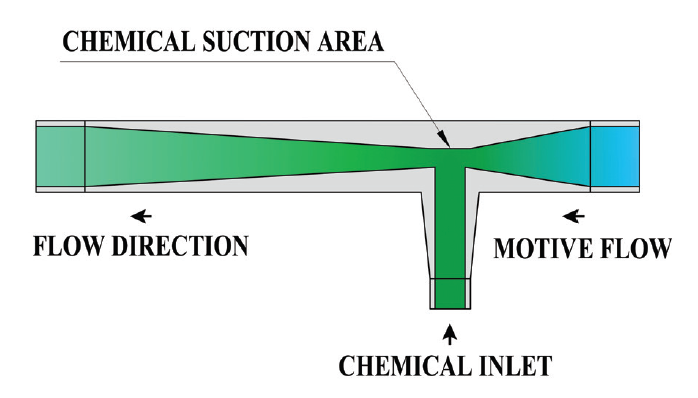

PRINCIPLE OF OPERATION

The Injector operates on the principle of vacuum suction created by an advanced Venturi complex. This implements the latest know-how in hydraulic technology and allows the injectors to operate at small pressure differentials.

A vacuum is created as the water flows through a converging passage that gradually widens (see diagram).

Injection is activated at the chemical inlet, when there is a pressure differential between the water entering the injectors and the water and chemical leaving to the irrigation system.

This pressure differential can be between 15-75% according to the required injection rate.
